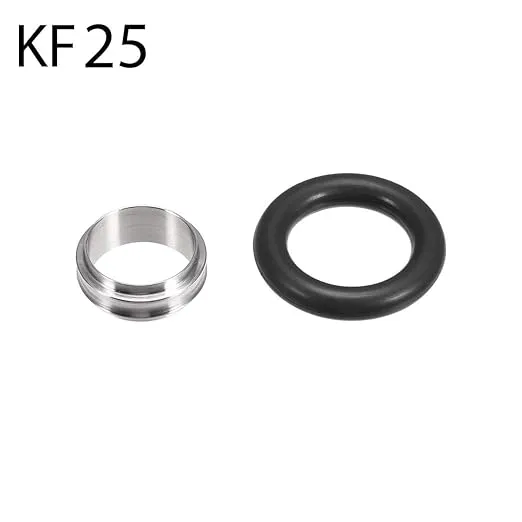

KF 25 Centering Ring with Viton O-Ring (FKM) for instrumentation ports and medium vacuum lines

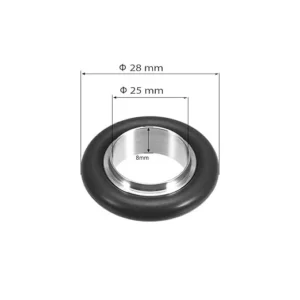

Side-profile close-up of the KF 25 Centering Ring thickness and material
Close-up view of the O-ring groove on a stainless steel KF Centering Ring
KF Centering Ring with FKM O-ring for vacuum sealing, DN16-DN50
Group of five (5) KF Centering Rings and O-rings, showing bulk vacuum component packaging
KF 25 Centering Ring with Viton O-Ring (FKM) for instrumentation ports and medium vacuum lines
Side-profile close-up of the KF 25 Centering Ring thickness and material
KF 16 Centering Ring with Viton O-Ring (FKM) for small diameter vacuum lines and analytical instrumentation KF16 Centering Ring with Viton O-Ring – ISO-KF/NW16 Vacuum Seal (Set of 5)
Group of five (5) KF Centering Rings and O-rings, showing bulk vacuum component packaging KF40 Centering Ring with Viton O-Ring – ISO-KF/NW40 Vacuum Seal (Set of 5)

KF 25 Centering Ring with Viton O-Ring for Vacuum Fittings set of 5

0 out of 5

Original price was: ₹1,375.00.Current price is: ₹1,240.00.

ISO-KF/NW25 centering ring with Viton O-ring designed to ensure proper alignment and leak-tight sealing between KF25 vacuum flanges. Compatible with standard KF25 clamps and fittings. Supplied as a set of 5.

Availability: 100 in stock SKU: UHVS KF25CR-SS Category: Tags: , , , , , , ,
Add to wishlist

Description

Product Overview

The KF25 (NW25) centering ring with Viton O-ring is a standard ISO-KF vacuum sealing component used to align mating KF25 flanges while providing a reliable, leak-tight vacuum seal. Installed between two KF25 flanges and secured using a compatible clamp, the centering ring ensures accurate positioning and consistent sealing performance.

The integrated Viton elastomer O-ring offers excellent resistance to chemicals, temperature variations, and vacuum degradation, making it suitable for demanding laboratory, research, and industrial vacuum applications. This centering ring is commonly used in vacuum pipelines, process systems, coating equipment, and analytical instruments.

Key Features

  • ISO-KF / NW25 standard centering ring

  • Integrated Viton O-ring for reliable vacuum sealing

  • Ensures accurate flange alignment

  • Excellent chemical and temperature resistance

  • Compatible with standard KF25 clamps and flanges

  • Suitable for medium and high vacuum applications

  • Supplied as a set of 5 centering rings

Technical Specifications

Parameter Specification
Standard ISO-KF / NW25
Nominal Size KF25 (NW25)
Centering Ring Material Aluminum
O-Ring Material Viton
Vacuum Range Medium to High Vacuum
Compatibility KF25 flanges & clamps
Quantity Set of 5

Applications

Suitable for use in a wide range of vacuum systems, including:

  • Research & Development laboratories

  • Semiconductor and coating systems

  • PVD / CVD vacuum equipment

  • Chemical and process vacuum setups

  • Industrial vacuum pipelines

  • Pharmaceutical and analytical vacuum systems

Actual usage and configuration depend on system design and operating conditions.

Why Buy from Ultrahivac

  • Precision-manufactured ISO-KF vacuum components

  • Consistent sealing and dimensional accuracy

  • Compatibility with standard vacuum hardware

  • Trusted supplier for laboratory and industrial vacuum users

FAQs

Is this centering ring compatible with standard KF25 vacuum clamps?
Yes, it is fully compatible with standard ISO-KF25 clamps and flanges.

What type of O-ring is supplied with this centering ring?
The centering ring is supplied with a Viton O-ring, suitable for most vacuum applications.

Can this be used in high vacuum systems?
Yes, when used with proper flanges and clamps, it is suitable for medium to high vacuum systems.
